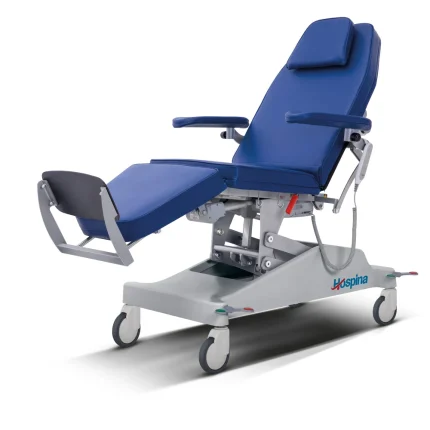

Dialysis bed :HOSPINA H3140 $1,800.00

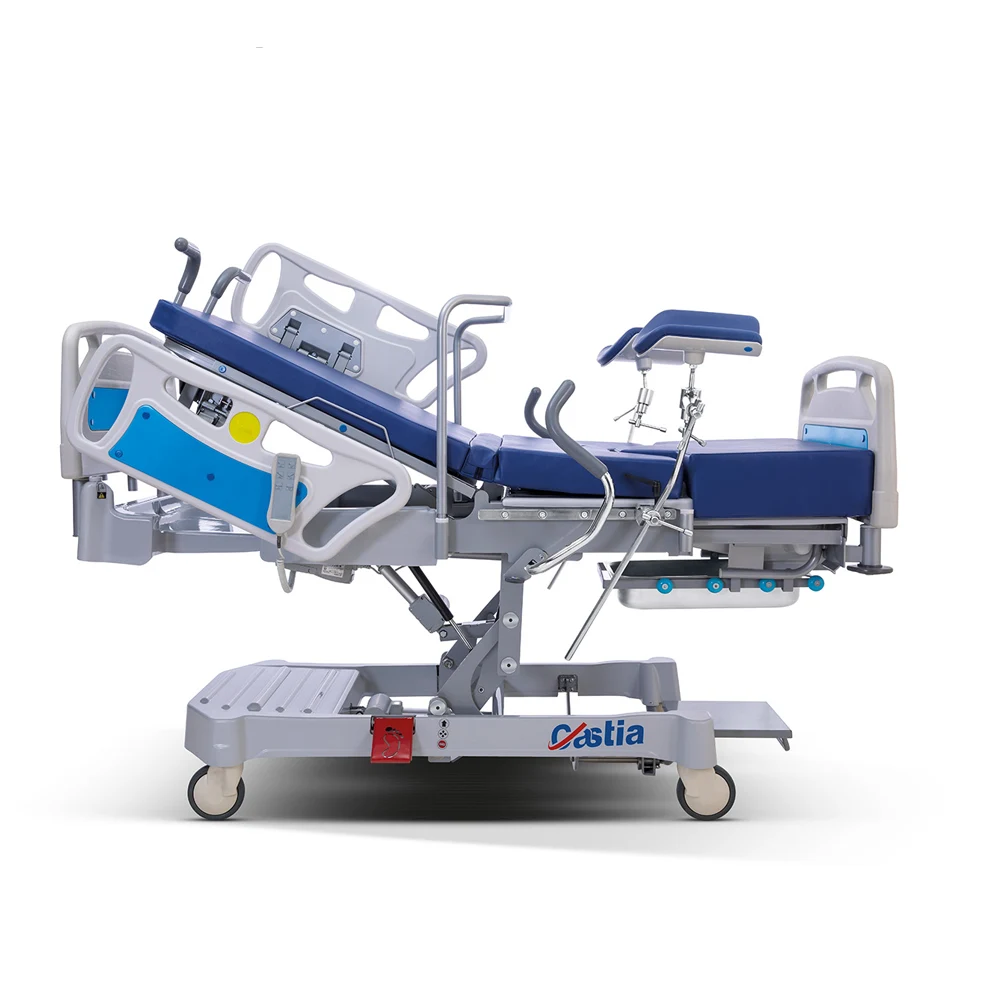

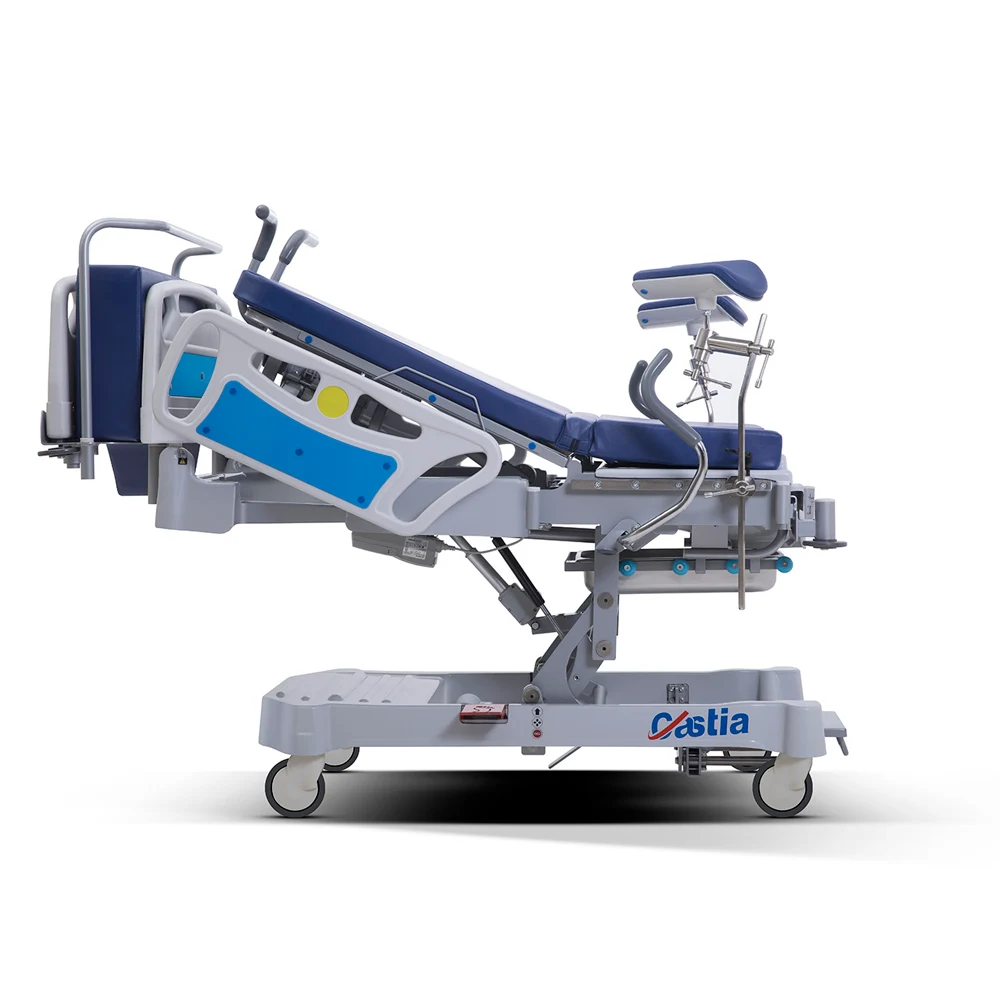

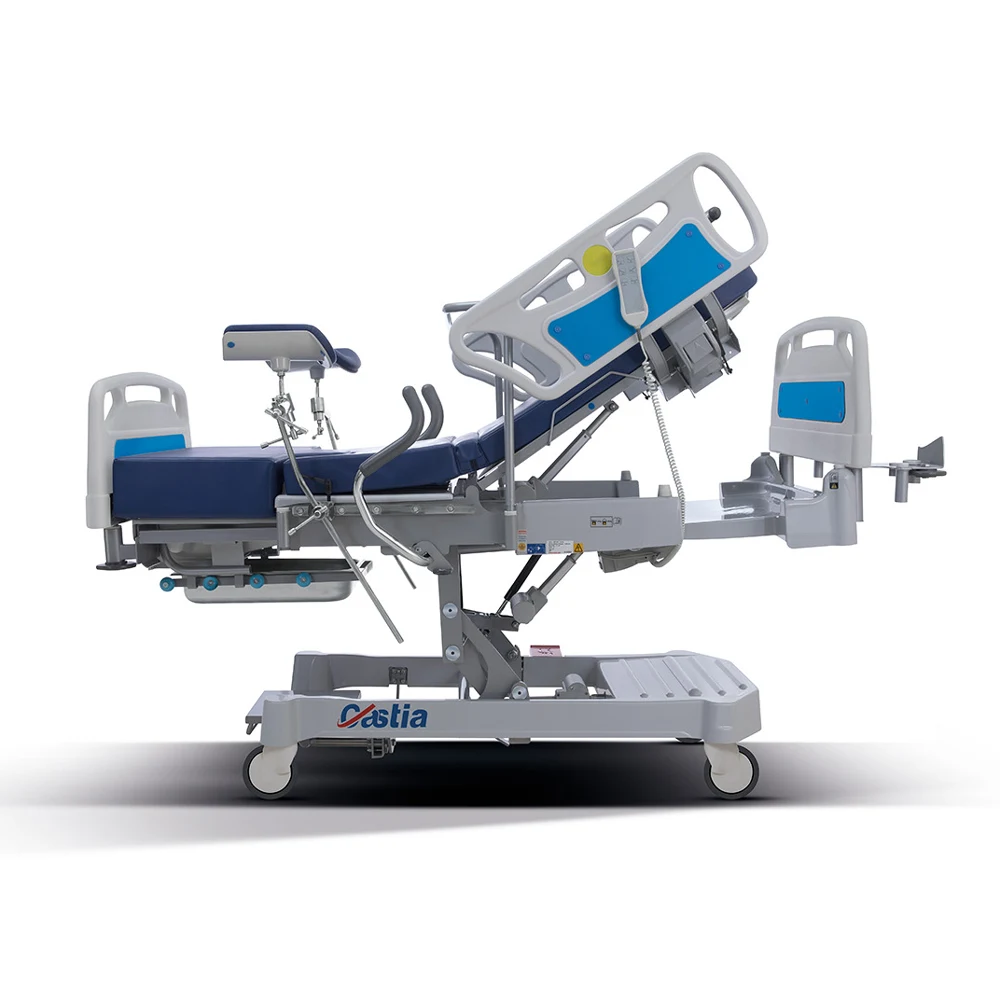

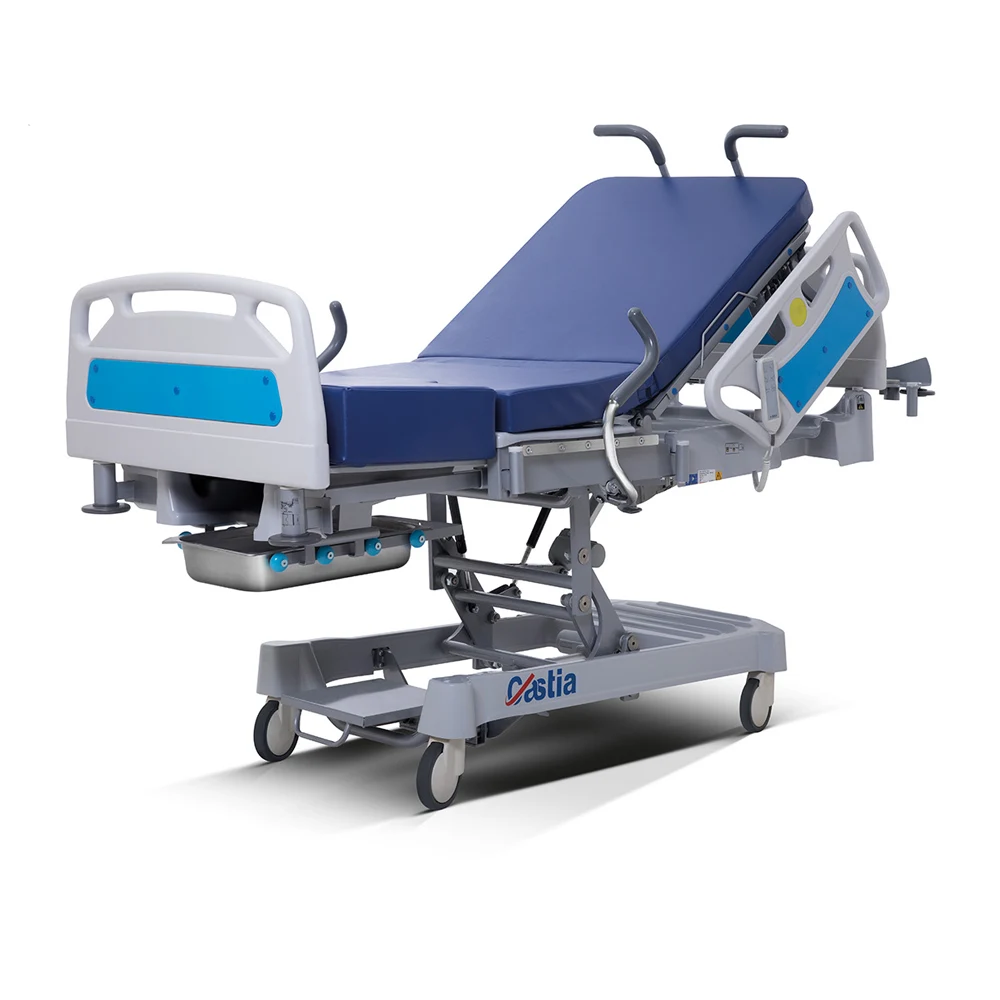

LDR BED: CASTIA DT3101POCE1.2

$2,120.00

Newly designed delivery beds that ease the trauma of birth by providing comfort and support throughout the stages of delivery. Complete range of accessories increases the comfort of both mother and nursing staff. This kind of bed helps to keep the state of a natural childbirth as healthy as possible.

Compare
Add to wishlist
Categories: ,
Description

In the realm of obstetrics and gynecology, the development of Labor, Delivery, and Recovery (LDR) beds has revolutionized the landscape of maternal care. These specialized beds cater to the specific needs of expectant mothers, providing a seamless transition from labor to delivery and postpartum recovery.

Designed to optimize comfort, safety, and efficiency during the entire childbirth process, LDR beds have become an indispensable tool in modern maternity wards, enhancing the overall birthing experience for both mothers and healthcare providers.

The CASTIA DT3101POCE1.2 is a specialized bed designed for labor, delivery, and recovery (LDR) in obstetric settings. This particular model have unique features and functionalities that cater to the specific needs of women during the childbirth process.

TECHNICAL INFORMATION

  • Backrest, Hi – Low and Trend/ Rev. Trend adjustments are electrically.
  •  Smooth Hi – Low and Trend/ Rev. Trend adjustments with the help of gas spring damper
  • Two plastic tucks away sideboards
  •  Three – functional positioning wired handset
  • Leg section can be slide under backrest for lithotomic positions.
  •  Telescopic section for transformation to delivery and labor bed
  • Two sliding lithotomic positions made of SS grade 304 (11 positions), calf supports covered with artificial leather
  • Pull out and removable stainless-steel bowl (10 liters) on roller rails
  •  Squat bar
  • Foldable hand grip on both sides
  • Detachable head/ footboards
  • Washable and disinfectable
  • Three section detachable mattress with washable artificial leather cover
  •  Four castors with central/directional brakes
  •  Four rubber bumpers
  • ABS cover for covering required parts
  • Detachable cover for pelvis and seat
  •  Electrostatic powder coating
  • Backup battery
  • Main power supply 220 V – 50 Hz, 24 DC
  • Max. power input 500 Watt
  •  Electrical current protection Class2
  •  Electrical shock position Type B
  •   Duty cycle %10
  •  Dust proof and water resistant IP66
  • Exclusive lithotomy, telescopic section mattress, foot board, squat bar holder designed at the back section
  •  IV stand holder at each corner
  •  Holder for squatting position
  •  Push grips over the head
  •  With doctor’s foot support
  •  Sliding step for the patient

DIMENSIONS and BASIC INFORMATION

  • Overall 2340 x 1000 (mm)
  •  Matterss platform 2000 x 865 (mm)
  •  Backrest angle 0° – 65°
  •  Hi–Low 695 – 885 (mm) without mattress
  •  Trend/Rev.Trend +15 /-15
  •  Castors 150 (mm) diameter
  •  Bed net weight: 192 Kg
  •  Safe working load capacity 170 Kg
  •  Max. load capacity 250 Kg

ACCESSORIES (Optional)

STANDARDS

  •  ISO 9001
  •  ISO 13485
  •  IEC 60601-1
  •  EN ISO 14971
  •  EN ISO 15223-1
  • CE



Additional information
Back Rest Adjustment By Actuator

Yes
Backup Battery

Yes
Base Cover

Yes
Central Lock Castor

Yes
Detachable Mattress

Yes
Height Adjustment

Yes
Number Of Actuators

4
Patient Wired Handset

Yes
Trend/Rev. Trend

Yes
