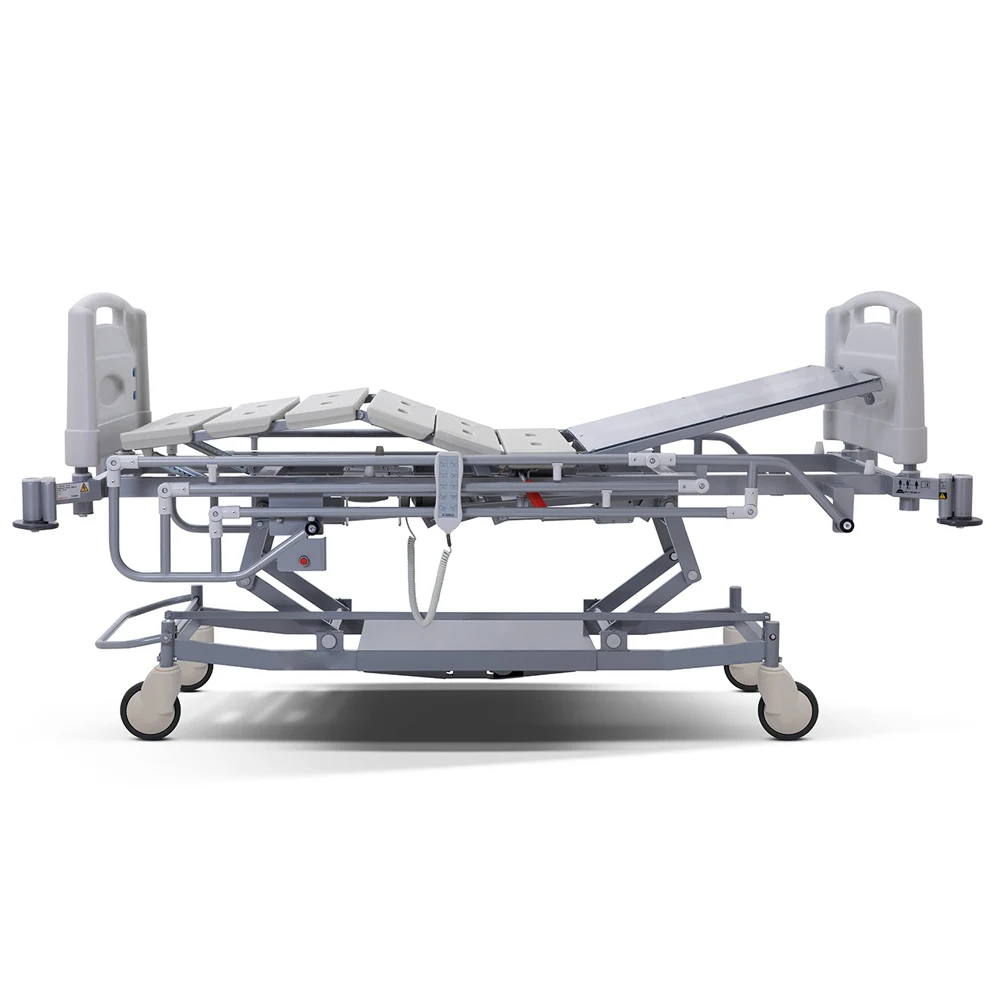

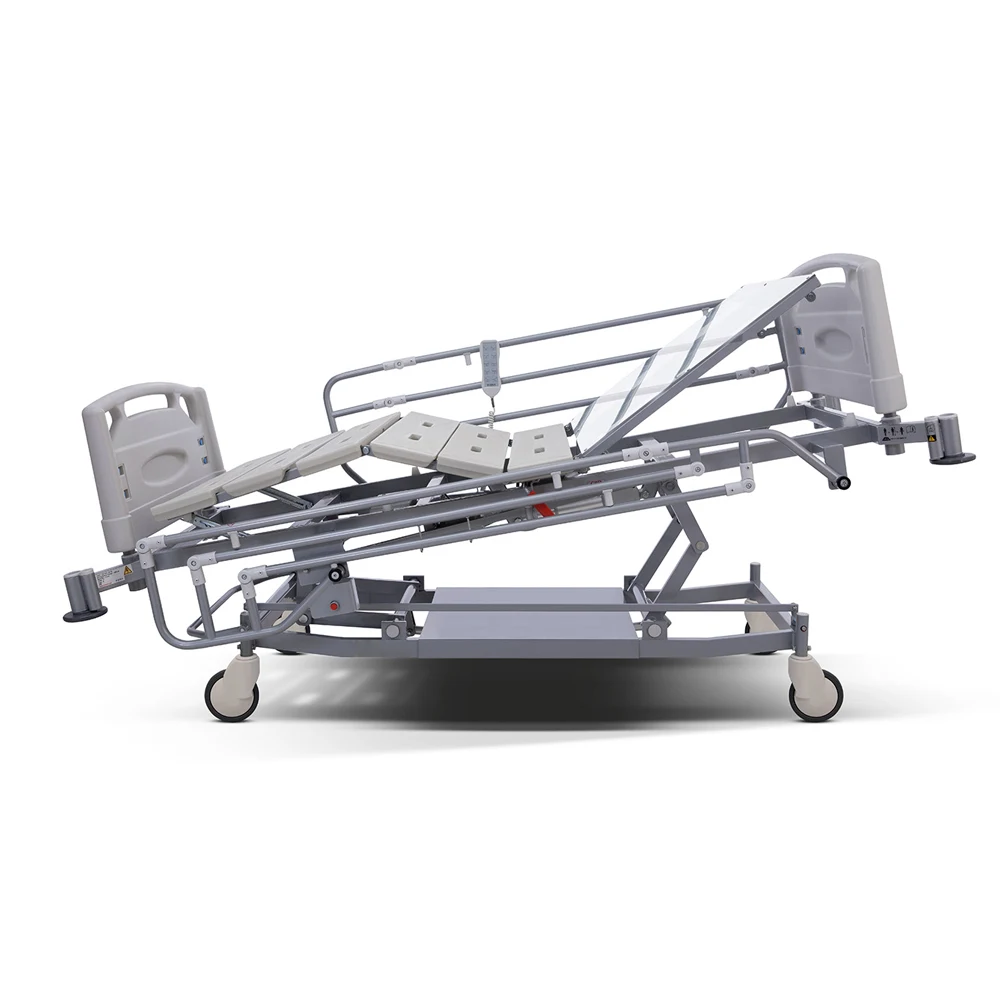

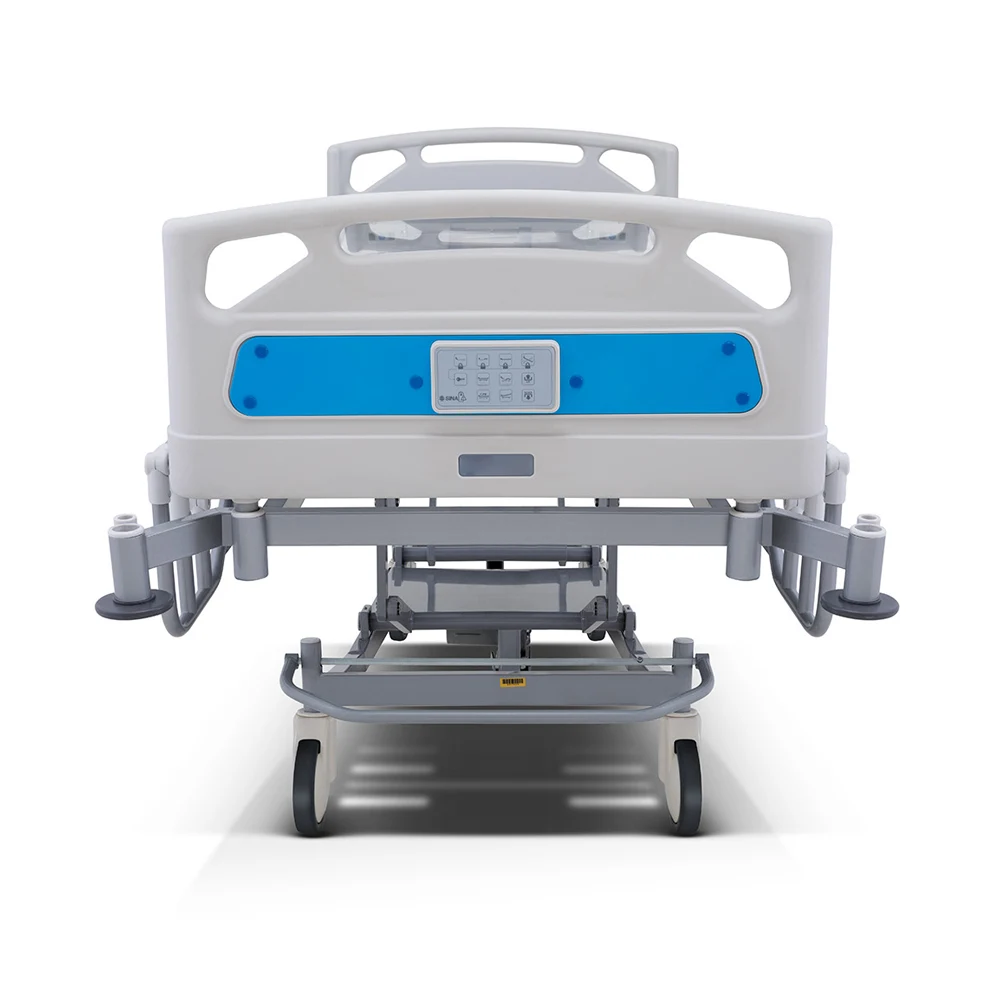

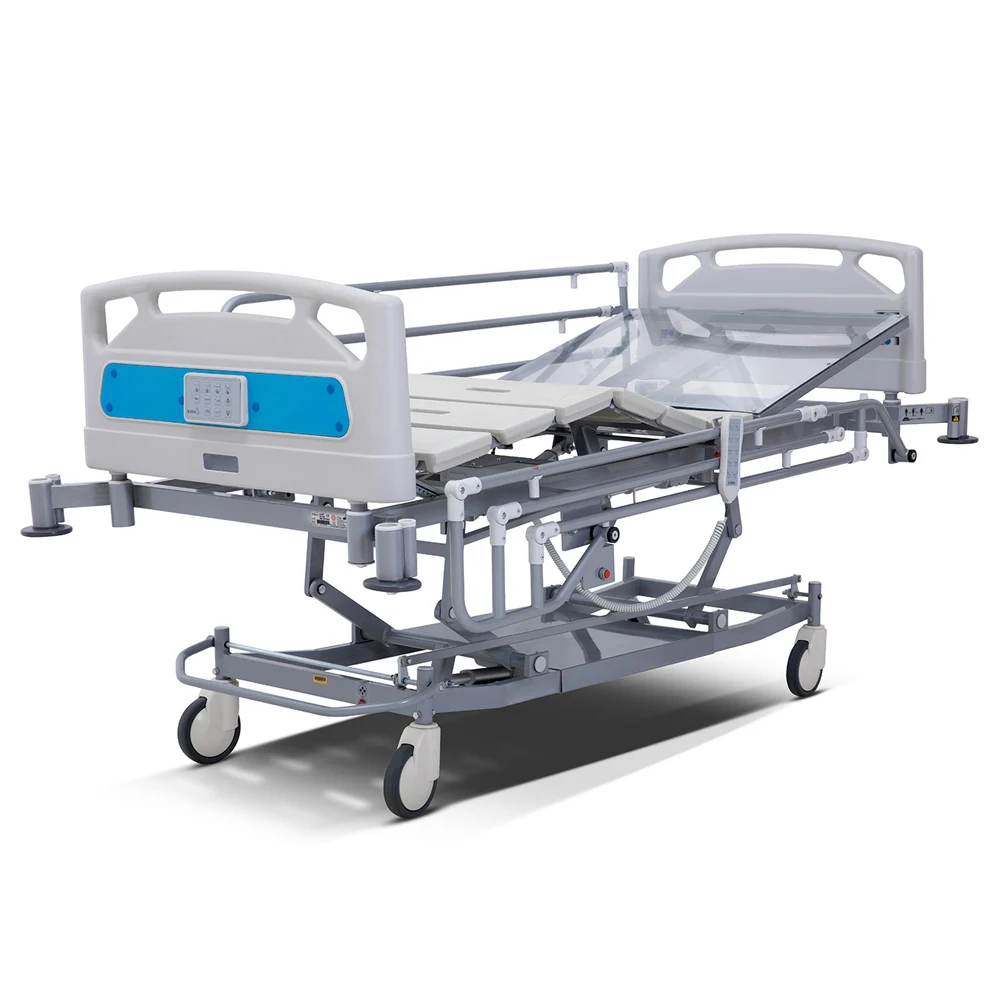

ELECTRICAL BED: SCALA T4001PRO

Electrical bed, also known as an electric bed or an adjustable bed, is a type of bed that can be adjusted electronically to achieve various positions for enhanced comfort and support. These beds are equipped with a motorized mechanism that allows the user to control the bed’s positioning through a remote control or a built-in control panel.

Adjustable positions of Electrical bed

They can be raised or lowered at the head, foot, or mid-section to provide different angles for sleeping, resting, or sitting up.

Customizable comfort of Electrical bed

Nurses can adjust the bed’s position to find the most comfortable and supportive configuration for their needs, which can be especially beneficial for individuals with specific medical conditions or mobility issues.

Therapeutic benefits of Electrical bed

Some electrical beds come with additional features such as massage functions, lumbar support, and zero-gravity positioning, which can offer therapeutic benefits and alleviate pain or discomfort.

Assistance for caregivers

Electric beds can make it easier for caregivers to attend to individuals who require assistance, as they can adjust the bed’s height to a suitable level for caregiving tasks, reducing strain and potential injuries.

Safety features of Electrical bed

Many electrical beds come with safety features such as side rails, emergency lowering functions, and sturdy construction to ensure the safety and security of the Patients.



TECHNICAL INFORMATION of Electrical bed

• Mattress platform is four section, three of them adjustable
• Covered with integrated plastic Two – ply surface.
• Airflow capability under the mattress
• Backrest/knee raise, Hi – Low and Trend/Rev. Trend adjustments are electrically.
• Backrest section is radiolucent with a cassette holder.
• Collapsible siderails
• Five – functional positioning wired handset
• Detachable head/foot boards
• Washable and disinfectable
• CPR handle at both sides for flattening back rest rapidly
• Electrical CPR is available for flattening bed rapidly.
• Foot section is adjustable by means of telescopic bracket.
• Four castors with central/directional brakes
• Electrostatic powder coating
•  Four rubber bumpers at corners
•  Backup battery
•  Main power supply 220V – 50 Hz, 24 DC
•  Max. power input 500 watt
•  Electrical current protection Class2
•  Electrical shock position Type B
•  Duty cycle %10
•  Dust proof and water resistant IP66
•  IV stand holder at each corner
•  Traction holder
•  Chest bottle holder
•  Hand grip holder
•  Urine bag holder at both sides
•   Orthopedic frame holder

DIMENSIONS and BASIC INFORMATION of Electrical bed

•  Overall 2290 x 1030 (mm)
•  Mattress platform 2000 x 900 (mm)
•  Backrest angle 0º – 80º
•  Knee raise 0º – 35º
•  Hi–Low 490 – 810 (mm)
•  Trend / Rev. Trend angle +15º / -15º
•  Castors 150 (mm) diameter
•  Bed net weight 146 Kg
•  Safe working load capacity 170 Kg
•   Max. load capacity 250 Kg

ACCESSORIES of Electrical bed (Optional)

•  IV stand
•  Hand grip Bar
•  Orthopedic frame
•  Traction Bar

STANDARDS of Electrical bed

• ISO 9001
• ISO 13485
• IEC 60601-1
• IEC 60601-2-52
• EN ISO 14971
• EN ISO 15223-1
• CE
