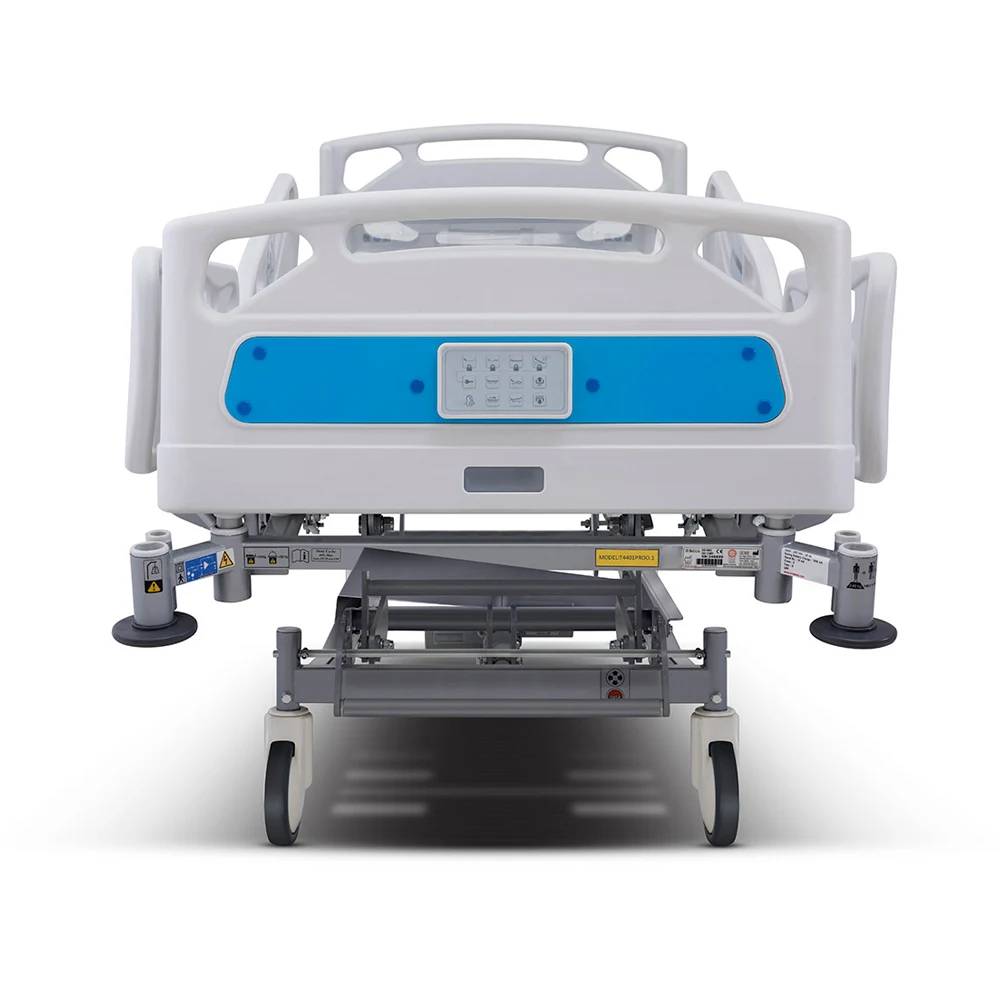

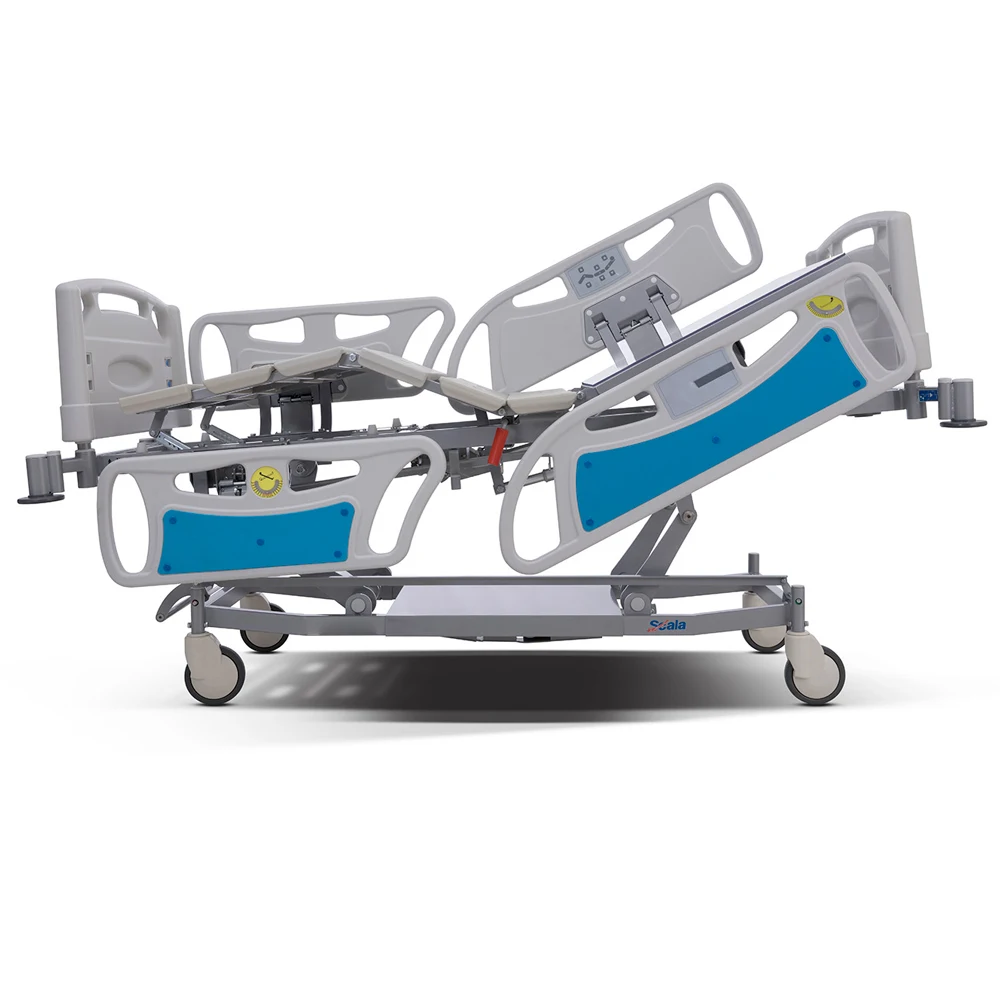

ICU/CCU BED: SCALA T4401PROO.2

The SCALA T4401PROO.2 ICU/CCU bed is a specialized hospital bed designed for use in intensive care units (ICUs) and cardiac care units (CCUs). This particular model may have unique features and functionalities that cater to the specific needs of critically ill patients requiring intensive monitoring and care.

1. Adjustable Positions: ICU/CCU beds often come with multiple adjustable positions to accommodate the patient’s comfort and medical requirements. These positions may include adjustable height, backrest, leg rest, and Trendelenburg/reverse Trendelenburg angles.
2. Enhanced Monitoring Capabilities: These beds are designed to integrate with monitoring equipment, allowing healthcare providers to easily access and monitor vital signs, such as heart rate, blood pressure, oxygen saturation, and electrocardiogram (ECG) readings.
3. Central Locking System: ICU/CCU beds often include a central locking system that allows healthcare providers to secure the bed in a stable position when needed, ensuring patient safety during procedures or when transferring the patient.
4. Bedside Controls: Bedside controls provide convenience for both patients and healthcare providers, enabling easy adjustment of bed positions without the need for extensive physical exertion or disturbance to the patient.

TECHNICAL INFORMATION

• Mattress platform is four section, three of them adjustable. Covered with integrated plastic Two – ply surface.
• Airflow capability under the mattress
• Backrest, knee raise, Hi – Low and Trend/Rev. Trend adjustments are electrically
• Backrest section is radiolucent with a cassette holder.
• Four tuck away plastic sideboards
• Angle indicator for backrest adjustment and Trend/Rev. Trend
• Positions can be adjusted and locked through the ACP by nurse
•  Three – functional positioning embedded control panel accessible to the patient that can be locked by ACP
• Detachable head and foot boards
• Washable and disinfectable
• CPR handle on both sides for flattening backrest rapidly
• Electrical CPR is available for flattening bed rapidly
• Foot section is adjustable by means of telescopic bracket
•  Four castors with central/directional brakes
• Electrostatic powder coating
•  Four rubber bumpers at corners
•  Backup battery
•  Main power supply 220V – 50 Hz, 24 DC
• Max. power input 500 watt
•  Electrical current protection Class2
• Electrical shock position Type B
• Duty cycle %10
• Dust proof and water resistant IP66
• IV stand holder at each corner
• Traction holder
• Chest bottle holder
• Hand grip holder
• Urine bag holder at both sides
• Orthopedic frame holder

DIMENSIONS and BASIC INFORMATION

• Overall 2320 x 970 (mm)
• Mattress platform 2000 x 900 (mm)
• Backrest angle 0º – 72º
• Knee raise 0º – 25º
• Hi–Low 490 – 810 (mm)
• Trend / Rev. Trend angle +15º / -15º
• Castors 150 (mm) diameter
• Bed net weight 153 kg
• Safe working load capacity 170 Kg
• Max. load capacity 250 Kg

ACCESSORIES(Optional)

• IV stand
• Hand grip Bar
• Orthopedic frame
• Traction Bar

STANDARDS

• ISO 9001
• ISO 13485
• IEC 60601-1
• IEC 60601-2-52
• EN ISO 14971
• EN ISO 15223-1
• CE
